iMac Pro 1,1 (27-Inch, Late 2017) – Full Information, Specs

The iMac Pro 1,1 (27-Inch, Late 2017) was initially introduced on December 4 to be, as claimed by Apple, its most powerful Mac ever. Aimed towards professionals, the computer is powered by a 3.2 Ghz Intel Xeon W-2140B processor. The iMac Pro 1,1 (27-Inch, Late 2017) stands out for a number of reasons, among such its advanced graphics system, together with faster memory and storage. It is also configured with 32GB of RAM and a 1TB SSD.

Apple iMac Pro 1,1 (27-Inch, Late 2017)

All-in-one design. More creative freedom.
All-in-one design. More creative freedom.

The standard baseline model of the iMac Pro 1,1 (27-inch, Late 2017) – priced at $4,999 – offers its consumer a 27-inch 5K Retina display, 8-core Intel Xeon W processor, AMD Radeon Vega 56 graphics, 32GB of ECC memory and a 1TB SSD.

A configure-to-order version of the iMac Pro features a 10-core Xeon W CPU, AMD Vega 64 graphics, 64GB of high-bandwidth memory and 2TB SSD, costing the potential customer an additional $3,000.

At its high-end price of $13,199, the user is offered an 18-core Intel Xeon W processor, the same AMD Radeon Vega 64 GPU, 128GB of RAM and 4TB of SSD storage.

Judging from its exterior, the iMac Pro 1,1 (27-inch, Late 2017) model is almost identical to the previously introduced 27-inch Mac, except offered in the Space Gray colorway. However, that is where the similarities between the two end. The iMac Pro 1,1 (27-Inch, Late 2017) stands far apart from all its predecessors not only due to its far advanced internal factors, but also the differences in its connectivity and mounting options.

Specifications

AboutManufacturerApple
Official NameiMac Pro
TypeDesktop Computer
Form-factorAll-in-One Stand
LaunchReleasedDecember 14, 2017
DiscountedStill Available
BodyDimensions25.6 x 20.3 x 8 in (65.0 x 51.6 x 20.3 cm)
Weight21.5 lbs. (9.7 kg)
DisplaySize27-inch Retina 5K display
Resolution5120‑by‑2880 pixels
PlatformOSMac OS
ChipsetApple Compatible Platform
CPU8, 10, 12 and 14-core Intel Xeon W Processors
GPU– Radeon Pro Vega 56 with 8GB of HBM2 memory
– Radeon Pro Vega 64 with 16GB of HBM2 memory
MemoryRAMFrom 32GB of 2666MHz DDR4 ECC memory
StorageFrom 1TB SSD
CommsLAN10GB Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ‑45 connector
USB-C4x Thunderbolt 3 (USB-C) ports with support for:
– DisplayPort 1.2
– Thunderbolt (up to 40 Gbps)
– USB 3.1 Gen 2 (up to 10 Gbps)
– Thunderbolt 2, HDMI, DVI, and VGA supported using adapters (sold separately)
USB4x USB 3 ports
WLAN802.11ac Wi-Fi wireless networking IEEE 802.11a/b/g/n compatible
BluetoothBluetooth 4.2 wireless technology
DisplaySimultaneously supports full native resolution on the built-in display at 1 billion colors and:
– Two 5120‑by‑2880 (5K) external displays at 60Hz with support for 1 billion colors, or
– Four 3840-by-2160 (4K UHD) external displays at 60Hz with support for 1 billion colors, or
– Four 4096‑by‑2304 (4K) external displays at 60Hz with support for millions of colors
CameraFront1080p FaceTime HD camera
BackN/A
AudioSpeakersStereo speakers
MicrophoneFour microphones
ConnsHeadphone3.5 mm headphone jack
SDXC cardYes
MemoryRAMFrom 32GB of 2666MHz DDR4 ECC memory
StorageFrom 1TB SSD
MiscColorsSpace Gray
PriceStarting at $4.999

Models

iMac Pro (27-inch Retina 5K, 3.2GHz 8-core Intel Xeon, Late 2017)

iMac Pro (27-inch Retina 5K, 3.2GHz 8-core Intel Xeon, Late 2017)
Model IdentifieriMacPro1,1
Model NumberA1862 (EMC 3144)
Part NumberMQ2Y2LL/A
Family27-inch Retina 5K, Late 2017
Released2017
Dimensions25.6 x 20.3 x 8 in
Weight21.5 pounds
Processor3.2GHz 8-core Intel Xeon
Display Size27 inches
RAM32/64/128GB
Storage1/2/4TB SSD
OpticalNone
See alsoSell your iMac Pro (27-inch Retina 5K, 3.2GHz 8-core Intel Xeon, Late 2017) online now

iMac Pro (27-inch Retina 5K, 3.0GHz 10-core Intel Xeon, Late 2017)

iMac Pro (27-inch Retina 5K, 3.0GHz 10-core Intel Xeon, Late 2017)
Model IdentifieriMacPro1,1
Model NumberA1862 (EMC 3144)
Part NumberBTO/CTO
Family27-inch Retina 5K, Late 2017
Released2017
Dimensions25.6 x 20.3 x 8 in
Weight21.5 pounds
Processor3.0GHz 10-core Intel Xeon
Display Size27 inches
RAM32/64/128GB
Storage1/2/4TB SSD
OpticalNone
See alsoSell your iMac Pro (27-inch Retina 5K, 3.0GHz 10-core Intel Xeon, Late 2017) online now

iMac Pro (27-inch Retina 5K, 2.5GHz 14-core Intel Xeon, Late 2017)

iMac Pro (27-inch Retina 5K, 2.5GHz 14-core Intel Xeon, Late 2017)
Model IdentifieriMacPro1,1
Model NumberA1862 (EMC 3144)
Part NumberBTO/CTO
Family27-inch Retina 5K, Late 2017
Released2017
Dimensions25.6 x 20.3 x 8 in
Weight21.5 pounds
Processor2.5GHz 14-core Intel Xeon
Display Size27 inches
RAM32/64/128GB
Storage1/2/4TB SSD
OpticalNone
See alsoSell your iMac Pro (27-inch Retina 5K, 2.5GHz 14-core Intel Xeon, Late 2017) online now

iMac Pro (27-inch Retina 5K, 2.3GHz 18-core Intel Xeon, Late 2017)

iMac Pro (27-inch Retina 5K, 2.3GHz 18-core Intel Xeon, Late 2017)
Model IdentifieriMacPro1,1
Model NumberA1862 (EMC 3144)
Part NumberBTO/CTO
Family27-inch Retina 5K, Late 2017
Released2017
Dimensions25.6 x 20.3 x 8 in
Weight21.5 pounds
Processor2.3GHz 18-core Intel Xeon
Display Size27 inches
RAM32/64/128GB
Storage1/2/4TB SSD
OpticalNone
See alsoSell your iMac Pro (27-inch Retina 5K, 2.3GHz 18-core Intel Xeon, Late 2017) online now

Special Features

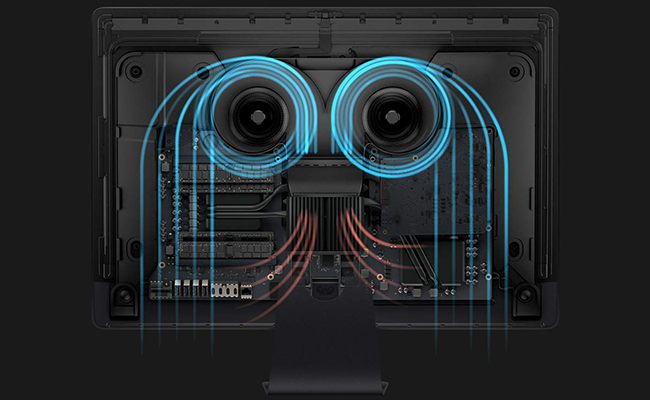

Advanced thermal management. Cool.
Advanced thermal management. Cool.
  • The iMac Pro 1,1 (27-inch, Late 2017) is configured with the new AMD Radeon Pro Vega chipsets.
    Starting with 32 GB of 2666MHz DDR4 ECC memory, the computer can be advanced to 64 or 128 GB – twice the amount on the standard iMac.
  • Unlike its MacBook equivalent, the iMac’s engineers did not take the plunge to entirely replace its standard USB ports with their Thunderbolt 3 equivalents. In fact, the iMac Pro features both side-by-side.
  • The iMac Pro also exhibits an improved 1080p FaceTime HD camera, paired with an advanced microphone system.

Miscellaneous

Available exclusively at the time of your iMac Pro purchase, these space gray accessories are wireless, rechargeable, and beautiful. The Magic Keyboard includes a numeric keypad, and to go with it you can choose either the Magic Mouse 2 or the Magic Trackpad 2.
Available exclusively at the time of your iMac Pro purchase, these space gray accessories are wireless, rechargeable, and beautiful. The Magic Keyboard includes a numeric keypad, and to go with it you can choose either the Magic Mouse 2 or the Magic Trackpad 2.
  • While having been positively acknowledged as an extremely capable and powerful computer, the iMac’s lack of upgradeability is pointed out by the majority of the reviewers.
